Beam Grate Systems for Efficient Solid Fuel Combustion – Advantages and Manufacturer Introduction

As the demand for efficient and environmentally friendly solid fuel combustion continues to grow, beam grate systems—also known as crossbeam grates—have become increasingly popular in modern industrial boilers, biomass power plants, and waste-to-energy facilities. Designed to handle a wide range of complex fuels, beam grates provide enhanced combustion performance, durability, and flexibility.

Advantages of Beam Grate Systems

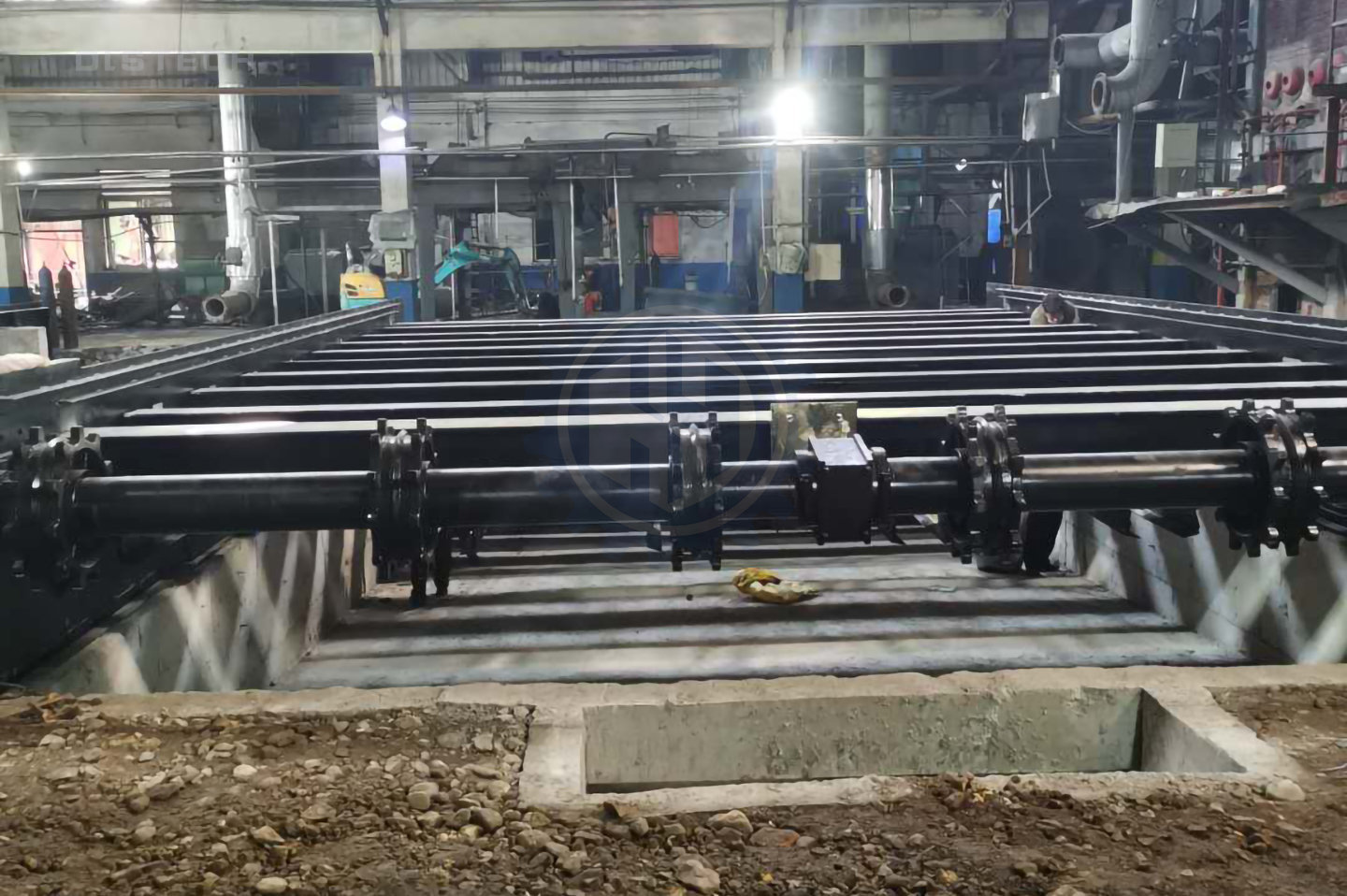

The beam grate system consists of fixed and moving grate bars supported by crossbeams. The alternating motion of moving grate bars facilitates the transport and agitation of fuel across different combustion zones. This structure brings several distinct advantages:

High Thermal Resistance and Structural Strength:
Grate bars in beam systems are typically made from heat-resistant alloy steel, providing excellent resistance to thermal fatigue and mechanical wear under high-temperature operation.

Efficient Fuel Handling:
Beam grates are particularly suitable for biomass, sludge, MSW, and low-grade coal. The system enables continuous and controlled fuel movement, supporting complete combustion and minimal unburned residue.

Optimized Air Distribution:
The system allows for precise primary air injection from below the grate through independent air zones. This enhances air-fuel mixing and supports stable and efficient combustion.

Flexible Design and Modular Construction:
Beam grates can be customized according to furnace size, fuel type, and combustion requirements. Their modular design makes installation and maintenance straightforward and cost-effective.

Reduced Clinker Formation:
The alternate movement of moving bars and the fixed arrangement of support beams help prevent slag accumulation and reduce the risk of grate blockages.

Manufacturer Profile:
Dalian Sunshine Boiler Auxiliaries Co., Ltd.

As a leading provider of combustion equipment in China, Dalian Sunshine Boiler Auxiliaries Co., Ltd. offers high-performance beam grate systems for a wide range of industrial applications. Backed by years of engineering expertise and continuous innovation, the company delivers grate solutions designed for reliable operation under harsh fuel conditions.

Key features of Dalian Sunshine’s beam grate systems include:

Use of ZG35Cr24Ni4MnN alloy steel, a material known for excellent high-temperature strength and corrosion resistance.

Custom-designed beam spacing and bar configuration based on specific fuel types (e.g., high-moisture biomass, high-ash MSW).

Optional hydraulic or mechanical drive systems, ensuring stable and controllable grate movement for optimized combustion.

Expertise in multi-zone air distribution systems, enhancing combustion efficiency and lowering emissions.

Whether you're operating a waste incinerator, biomass boiler, or sludge combustion facility, Dalian Sunshine Boiler Auxiliaries Co., Ltd. offers the advanced beam grate technology needed to meet your energy and environmental goals.

For technical support, product inquiries, or partnership opportunities, Dalian Sunshine welcomes cooperation with clients around the world.
